Fully Automatic Circular Filter Press, High-Pressure Quick Opening Filter Cake Automatically Falls Off
Product Introduction
A filter press is a mechanical device that uses a special filtering medium to apply a certain pressure to an object, causing liquid to be dialyzed out. It is a commonly used solid-liquid separation equipment. It was applied in chemical production in the early 18th century and is still widely used in industries such as chemical, pharmaceutical, metallurgy, dyes, food, brewing, ceramics, and environmental protection.
The filter plate has stable performance, easy operation, safety, and labor-saving; The metal squeezing cylinder is made of seamless steel pipe processing and precision casting of plastic steel filter plate, which is resistant to high temperature and high pressure and durable.
Product structure
The hydraulic clamping mechanism of the filter press consists of a hydraulic station, an oil cylinder, a piston, a piston rod, and a Haflan card connecting the piston rod to the clamping plate. The structure of a hydraulic station consists of a motor, an oil pump, an overflow valve (regulating pressure), a directional valve, a pressure gauge, an oil circuit, and an oil tank.
Filtration method: The filtrate flows out through clear flow filtration and dark flow filtration. Clear flow filtration, with a water nozzle installed on the bottom outlet of each filter plate, allowing the filtrate to flow out intuitively from the water nozzle. Underflow filtration, each filter plate is equipped with an outlet channel hole below, and the outlet holes of several filter plates are connected to form an outlet channel, which is discharged through a pipeline connected to the outlet holes below the thrust plate.
Product Application
1. As a mature dewatering equipment, filter press is widely used in the field of environmental protection and has become an important equipment for sewage and sludge treatment.
2. Mechanical dewatering of sludge mainly removes capillary water between sludge particles. The moisture content of sludge after ordinary mechanical dewatering is usually 65% -80%, and it is in the form of a sludge cake.
3. Mechanical dewatering equipment used to mainly include belt filter presses, plate and frame filter presses, and horizontal screw settling centrifuges. Nowadays, box filter presses, vertical hydraulic filter presses, diaphragm presses, and high-pressure plate and frame presses are commonly used.

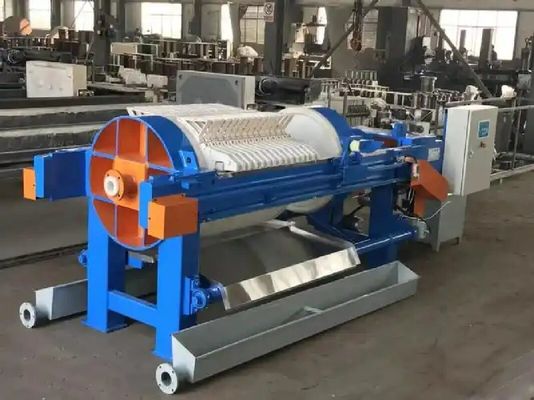

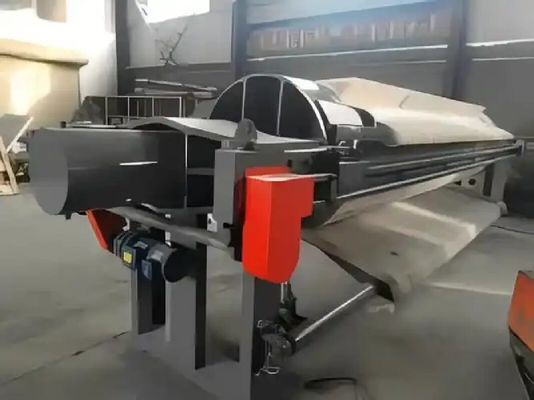

Product Display
Product Parameters
| Model | Area(m²) | Plate size(mm) | Cake thickness(mm) | Filter chamber volume(L) | Plate Qty(pcs) | Filtration pressure(Mpa) | Weight(Kg) | L*W*H(mm) | Foundation Sizel(mm) |
| L | B | D |
| XMY40/φ800-25 | 40 | φ800 | 25 | 499 | 40 | 1.0-3.0 | 4554 | 4300×1100×1060 | 3500 | 530 | 1050 |
| XMY50/φ800-25 | 50 | 621 | 50 | 5150 | 4820×1100×1060 | 4020 |
| XMY60/φ800-25 | 60 | 753 | 60 | 9710 | 5340×1100×1060 | 4540 |
| XMY70/Φ800-25 | 70 | 875 | 70 | 5760 | 5860×1100×1060 | 5580 |
| XMY80/φ800-25 | 80 | 1000 | 80 | 6860 | 6200×1100×1060 | 5660 |
| XMY80/φ1000-30 | 80 | φ1000 | 30 | 1210 | 59 | 1.0-3.0 | 6652 | 7254×1311×1399 | 5857 | 680 | 1400 |
| XMY90/φ1000-30 | 90 | 1350 | 66 | 6848 | 7709×1311×1399 | 6312 |
| XMY100/φ1000-30 | 100 | 1500 | 74 | 7072 | 8229×1311×1399 | 6850 |
| XMY110/φ1000-30 | 110 | 1650 | 81 | 7268 | 8684×1311×1399 | 7305 |
| XMY120/φ1000-30 | 120 | 1800 | 88 | 7464 | 9591×1311×1399 | 7758 |
| XMY130/φ1000-30 | 130 | 1950 | 96 | 7688 | 10111×1311×1399 | 8246 |
| XMY140/φ1000-30 | 140 | 2100 | 103 | 7884 | 10566×1311×1399 | 8735 |
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
